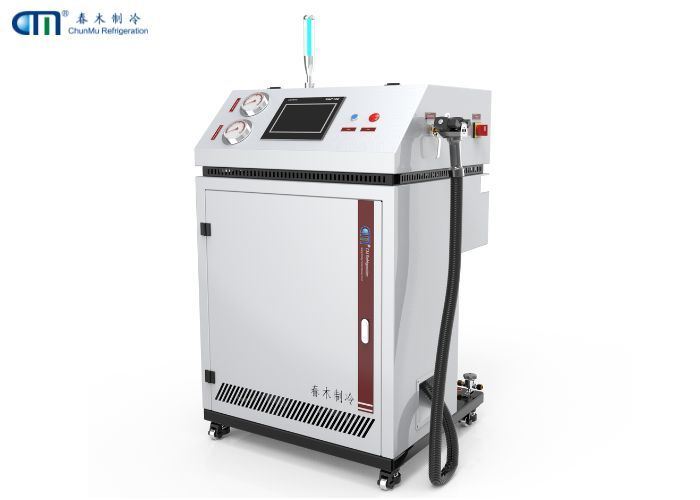

CM8600(ExS) Flammable Refrigerant Charging Machine with 40-200g/s fast charging rate
|
CM8600(ExS) Flammable Refrigerant Charging Machine with 40-200g/s fast charging rate
| Place of Origin | JiangSu, China |
| Brand Name | ChunMu Refrigeration |
| Certification | CE, ATEX, ZJEx |
| Model Number | CM8600(ExS) |
Product Details
Product Name:
CM8600(ExS) Refrigerant Charging Machine For Flammable Refrigerant
Type:
Refrigerant Charging Machine
Charging Speed:
40g/s - 200g/s
Charging Capacity:
10-99999g
Charging Accuracy:
＜100g, ±1g; 100g-2000g, ≤±0.5%; ＞2000g, ≤±0.3%
Resolution:
0.1g
Injector Connector:
Hansen 1/4" Or 3/8"
Charging Hose Length:
3m-20m
Port:
Shanghai Ningbo Tianjin Qingdao Shenzhen
Warranty:
1 Year
Highlight:
flammable refrigerant charging machine
,CM8600 refrigerant charging machine
,high-speed refrigerant charging machine 200g/s
Payment & Shipping Terms
Minimum Order Quantity
1
Price
US $16730~$19400
Packaging Details
Plywood Case on Pallet
Delivery Time
7-30 work days
Payment Terms
L/C,T/T
Supply Ability
50 Unit/Units per Month
Product Description
CM8600(ExS) Refrigerant Charging Machine For Flammable Refrigerant
Product Specifications
| Attribute | Value |
|---|---|
| Product name | CM8600(ExS) Refrigerant Charging Machine For Flammable Refrigerant |
| Type | Refrigerant Charging Machine |
| Charging Speed | 40g/s - 200g/s |
| Charging Capacity | 10-99999g |
| Charging Accuracy | ＜100g, ±1g; 100g-2000g, ≤±0.5%; ＞2000g, ≤±0.3% |
| Resolution | 0.1g |
| Injector Connector | Hansen 1/4" Or 3/8" |
| Charging Hose Length | 3m-20m |
| Port | Shanghai Ningbo Tianjin Qingdao Shenzhen |
| Warranty | 1 Year |
Product Description
The CM8600(ExS) series refrigerant charging machine is designed for flammable refrigerants such as R600a, R290, R32, R1234ze, and R1234yf. It is suitable for vacuuming, leak testing, and refrigerant charging on assembly lines for various refrigeration systems (refrigerators, chillers, heat pumps, air conditioners, etc.). The system features an explosion-proof design, an isolated electrical control system, and an explosion-proof vacuum pump to ensure safe operation.
Key Advantages
- Siemens smart PLC technology for fast and accurate operation process
- Automatic reminder function when the liquid supply tank is lack of refrigerant
- Pneumatic pressurization to prevent refrigerant pollution, ensure stable pressure supply and reliable safety
- High-precision flow sensor as a measuring device to ensure accuracy
- Equipped with leakage alarm device
- Powerful pneumatic booster pump for high speed charging rate
- Combines vacuum, leakage inspection, and refrigerant charging in one system
- Ergonomic filling gun design for easy operation and maintenance
Technical Specifications
| Model | CM8600(ExS) |
|---|---|
| Serial No. | ExS40 | ExS60 |
| Charging Speed | ≥40 g/s (2.4 kg/min) | ≥60-80 g/s (3.6-4.8 kg/min) |
| Single Charging Capacity | 10-999999g |
| Charging Accuracy | ＜500g, ≤1g; 500g-2000g, ≤±0.5%; ＞2000g, ≤±0.3% |
| Measurement Methods | RRT turbine flowmeter (EMERSON mass flowmeter optional) |
| Resolution Ratio | 0.1g |
| Certification | CE, ATEX, ZJEX |
| Vacuum Rate | 4L/S | 8L/S |
| Vacuum Degree of Machine | 3-5pa |
| Injector Connection | Hansen 1/4 or 3/8 quick connectors |
| Charging Hose Length | 3m - 20m |
| Communication Interface | RS485/RS232/Ethernet |
| Pre-set Channel | 100 |
| Compressed air Pressure | 0.5-0.7Mpa |
| PLC | Siemens |
| Power Supply | 380V 50Hz 3Phase or 220V 50Hz 1Phase |
| Dimension | 900*800*1340 mm |
| Approved Refrigerants | R600a, R290, R32, R1234ze, R1234yf, R134A etc. |
| Option Function | Refrigerant recovery unit, Bar code scanner, Printer, Data acquisition, IPC |
| Application | Air Condition, Water Cooler, Beer Machine, Freezers, refrigerators, chillers, heat pumps, etc. |
Our Services
- OEM & ODM services and custom solutions
- 24-hour response to price and technical inquiries
- On-site factory inspection or virtual tours available
- Technical engineers provide model selection guidance
- Detailed quotation and system configuration provided
- Complete installation documentation included
- Comprehensive after-sales service and support
About Nanjing ChunMu (CM) Refrigeration
Founded in 1998, Nanjing ChunMu operates from a 10,184.17㎡ facility as a smart modeling enterprise specializing in refrigerant recovery, purification, and charging equipment R&D and manufacturing. Established a US branch in 2019 with nearly 100 employees globally. With 21 years of export experience, we currently serve markets in over 64 countries and regions.
Quality Certifications
CM products undergo strict quality control and hold the following certifications: European Union CE certification, ATEX explosion-proof certification, ISO9001 certification.
Cooperation Partners
We have established long-term partnerships with global refrigeration equipment manufacturers including York (12 years cooperation), Daikin, Carrier, McQuay, Trane, and Danfoss.
Packing & Delivery
- Fast Delivery: Standard models available for immediate shipment
- Packaging: Non-fumigation packaging box with buckle type lock for safety shipping
Frequently Asked Questions
Q1: Minimum Order Quantity(MOQ) and product delivery time
MOQ: 1 Unit. Product Delivery Time: 7-30 days (Specific time according to specific products)
Q2: The whole order process
Technical proposal communication → Order production → Performance test → Packaging → Necessary documents confirmation → Transportation → Customs declaration → Shipping → Installation assistance (provide user manual or install video) → After-sales support. Buyer will receive the notification mail (include photos, report or other documents) in each process.
Q3: Could you customize the equipment?
OEM and ODM are accepted, or any other unique customization needs. ChunMu's experienced technical engineers will provide selection guidance or help design customized models.
Q4: What does the sales service include?
- 24-hour response to price and technical inquiries
- Technical engineers provide model selection guidance
- Optional installation parts and auxiliary equipment
- Detailed quotation and system configuration
- Complete installation documentation
- Comprehensive after-sales service and support
Q5: What kind of warranty do we offer?
All products undergo strict testing. CM Refrigeration provides a 12-month warranty from the date of bill of lading. During this period, we provide spare parts at no charge for quality issues. After warranty, we offer spare parts at cost price and continued technical support.
