Chillers Automatic Refrigerant Filling Machine With 60-80G/S Speed
| Place of Origin | JiangSu, China |
| Brand Name | ChunMu Refrigeration |
| Certification | CE, ATEX, ZJEx |
| Model Number | CM8600(ExS) |
Chillers Automatic Refrigerant Filling Machine
,80G/S Automatic Refrigerant Filling Machine
,60G/S Automatic Refrigerant Charging Equipment

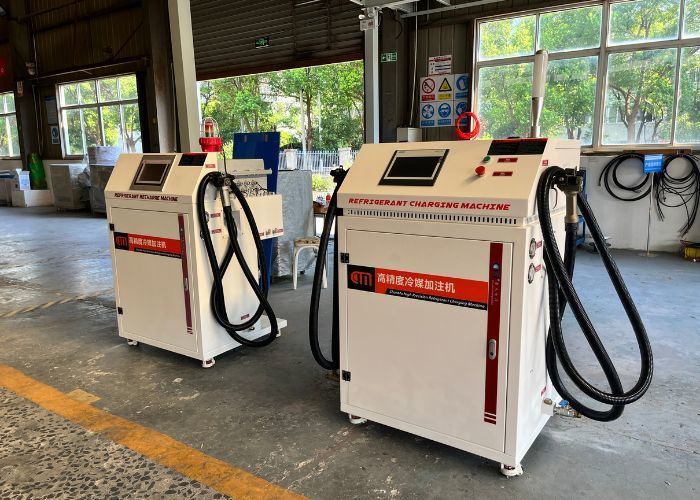

The CM8600 series refrigerant charging machine is specially designed for flammable and explosive refrigerants, suitable for various cooling system assembly lines (refrigerators, water coolers, heat pumps, air conditioners, etc.) to perform evacuation, leakage tests, and refrigerant charging. This model features dual charging systems allowing simultaneous operation with two charging guns and includes an optional recovery function for mixed production lines. The entire system is CE and ATEX certified.
- Siemens smart PLC technology for fast and accurate operation
- Automatic refrigerant level monitoring with low-level alerts
- Pneumatic pressurization system prevents refrigerant contamination
- High-precision flow sensor ensures accurate measurement
- Integrated leakage alarm system
- Combined vacuum, leakage inspection, and refrigerant charging in one system
- Ergonomic filling gun design for easy operation and maintenance
| CM8600(ExS) Refrigerant Charging Machine For Flammable Refrigerant | ||
| Model | CM8600 (ExS) | |
| Serial No. | ExS40 | ExS60 |
| Charging Speed | ≥40 g/s (2.4 kg/min) |
≥60-80 g/s (3.6-4.8 kg/min) |
| Single Charging Capacity | 10-999999g | |
| Charging Accuracy | ＜Less than 500g, ≤1g 500 g-2000g, ≤±0.5% ＞2000g, ≤±0.3% |
|
| Measurement Methods | RRT turbine flowmeter (EMERSON mass flowmeter is optional) | |
| Resolution Ratio | 0.1g | |
| Certification | CE, ATEX, ZJEX | |
| Vacuum Rate | 4L/S | 8L/S |
| Vacuum Degree of Machine | 3-5pa | |
| Injector Connection | Hansen 1/4 or 3/8 quick connectors | |
| Charging Hose Length | 3m - 20m | |
| Communication Interface | RS485/RS232/Ethernet | |
| Pre-set Channel | 100 | |
| Compressed air Pressure | 0.5-0.7Mpa | |
| PLC | Siemens | |
| Power Supply | 380V 50Hz 3Phase or 220V 50Hz 1Phase | |
| Dimension | 900*800*1340 mm | |
| Approved Refrigerants | R600a, R290, R32, R1234ze, R1234yf, R134A etc. | |
| Option Function | Refrigerant recovery unit, Bar code scanner, Printer, Data acquisition, IPC | |
| Application | Air Condition, Water Cooler, Beer Machine, Freezers, refrigerators, chillers, heat pumps, etc. | |
- OEM & ODM customization available
- 24-hour response to inquiries
- On-site factory inspection or virtual tours
- Technical guidance and model selection assistance
- Complete documentation including electrical diagrams and user manuals
- Comprehensive after-sales support
Founded in 1998, Nanjing ChunMu operates from a 10,184.17㎡ facility specializing in refrigerant recovery, purification, and charging equipment R&D and manufacturing. With a US branch established in 2019 and nearly 100 employees globally, we have 21 years of export experience serving markets in over 64 countries.
Our products undergo strict quality control and hold European Union CE certification, ATEX explosion-proof certification, and ISO9001 certification.
We maintain long-term partnerships with global refrigeration equipment manufacturers including York (12-year partnership), Daikin, Carrier, McQuay, Trane, and Danfoss.
- Fast Delivery: Standard models available for immediate shipment
- Secure Packaging: Non-fumigation packaging boxes with buckle-type locks
MOQ: 1 Unit. Delivery Time: 7-30 days (varies by product).
Technical proposal → Order production → Performance test → Packaging → Documentation → Shipping → Installation support → After-sales service. Customers receive notifications at each stage.
Yes, we accept OEM and ODM requests. Our engineers will provide guidance or design customized solutions.
Our comprehensive service includes technical support, customization options, detailed documentation, and after-sales assistance.
12-month warranty from bill of lading date, including free replacement parts for quality issues. Post-warranty support available at cost.
