| Brand Name: | ChunMu Refrigeration |
| Model Number: | CM8600(Exs) |
| MOQ: | 1 |
| Price: | US $16730- 18400 |
| Delivery Time: | 7-30 work days |
| Payment Terms: | L/C,T/T |

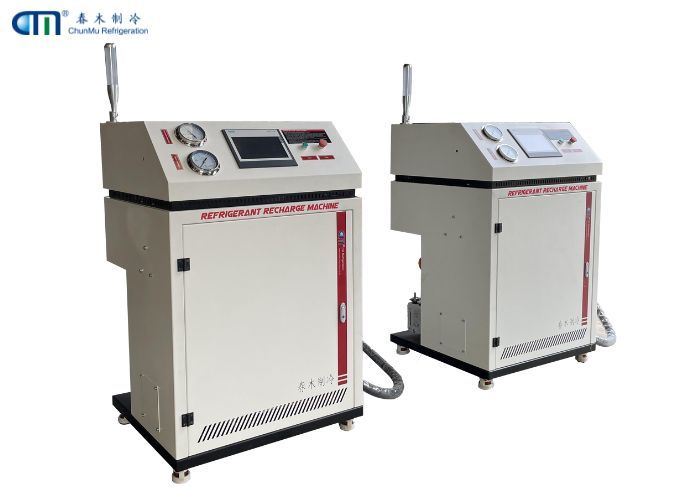

CM8600(ExS)series refrigerant charging machine was specially designed for work with flammable refrigerant, like R600a,R290,R32,R1234ze,R1234yf ...etc and to be used in any kind of assembly lines of cooling system (refrigerators, water cooler,heat pump, air conditioners etc...) to perform evacuation, leakage test and refrigerant charging. This system utilizes explosion proof design ,isolated electrical control system with explosion proof vacuum pump for safety operation process.
This model features dual charging systems allowing simultaneous operation with two charging guns and includes an optional recovery function for mixed production lines. The entire system is CE and ATEX certified.
| Attribute | Value |
|---|---|
| Model | CM8600(ExS) |
| Charging Speed | ≥60-80 g/s (3.6-4.8 kg/min) |
| Charging Capacity | 10-999999g |
| Charging Accuracy | <100g: ±1g; 100g-2000g: ≤±0.5%; >2000g: ≤±0.3% |
| Resolution | 0.1g |
| Vacuum Degree | 3-5pa |
| Injector Connector | Hansen 1/4" or 3/8" |
| Charging Hose Length | 3m-20m |
| PLC | Siemens |
| Power Supply | 380V 50Hz 3Ph or 220V 50HZ 1Ph |
| Approved Refrigerants | R600a, R290, R32, R1234ze, R1234yf, R134a, etc. |
| Application | Air conditioners, water coolers, beer machines, freezers, refrigerators, chillers, heat pumps |
| Warranty | 1 Year |
| CM8600(ExS) Refrigerant Charging Machine For Flammable Refrigerant | ||
| Model | CM8600 (ExS) | |
| Serial No. | ExS40 | ExS60 |
| Charging Speed | ≥40 g/s (2.4 kg/min) |
≥60-80 g/s (3.6-4.8 kg/min) |
| Single Charging Capacity | 10-999999g | |
| Charging Accuracy | ＜Less than 500g, ≤1g 500 g-2000g, ≤±0.5% ＞2000g, ≤±0.3% |
|
| Measurement Methods | RRT turbine flowmeter (EMERSON mass flowmeter is optional) | |
| Resolution Ratio | 0.1g | |
| Certification | CE, ATEX, ZJEX | |
| Vacuum Rate | 4L/S | 8L/S |
| Vacuum Degree of Machine | 3-5pa | |
| Injector Connection | Hansen 1/4 or 3/8 quick connectors | |
| Charging Hose Length | 3m - 20m | |
| Communication Interface | RS485/RS232/Ethernet | |
| Pre-set Channel | 100 | |
| Compressed air Pressure | 0.5-0.7Mpa | |
| PLC | Siemens | |
| Power Supply | 380V 50Hz 3Phase or 220V 50Hz 1Phase | |
| Dimension | 900*800*1340 mm | |
| Approved Refrigerants | R600a, R290, R32, R1234ze, R1234yf, R134A etc. | |
| Option Function | Refrigerant recovery unit, Bar code scanner, Printer, Data acquisition, IPC | |
| Application | Air Condition, Water Cooler, Beer Machine, Freezers, refrigerators, chillers, heat pumps, etc. | |
Founded in 1998, ChunMu (CM) Refrigeration operates from a 10,184.17㎡ facility specializing in refrigerant recovery, purification, and charging equipment R&D and manufacturing. With a US branch established in 2019 and nearly 100 employees globally, we have 21 years of export experience serving markets in over 64 countries.
Our products undergo strict quality control and hold European Union CE certification, ATEX explosion-proof certification, and ISO9001 certification.
We maintain long-term partnerships with global refrigeration equipment manufacturers including York (12-year partnership), Daikin, Carrier, McQuay, Trane, and Danfoss.
MOQ: 1 Unit. Delivery Time: 7-30 days (varies by product).
Technical proposal → Order production → Performance test → Packaging → Documentation → Shipping → Installation support → After-sales service. Customers receive notifications at each stage.
Yes, we accept OEM and ODM requests. Our engineers will provide guidance or design customized solutions.
Our comprehensive service includes technical support, customization options, detailed documentation, and after-sales assistance.
12-month warranty from bill of lading date, including free replacement parts for quality issues. Post-warranty support available at cost.
