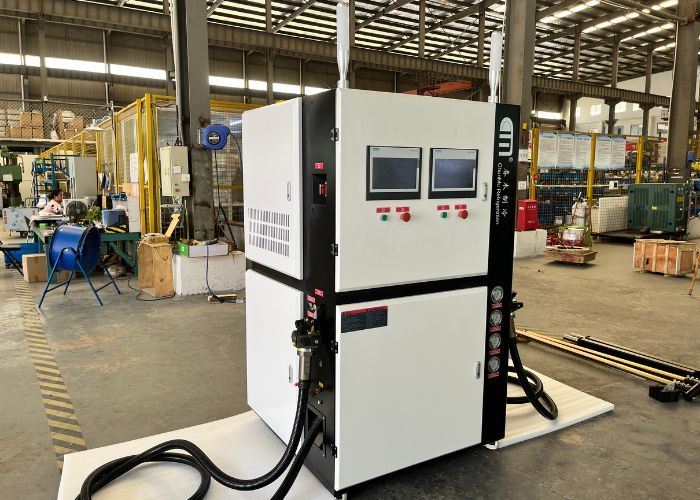

Freezers Refrigerant Charging Machine With 100-200g/S Fast Charging Rate
|
Freezers Refrigerant Charging Machine With 100-200g/S Fast Charging Rate
| Place of Origin | JiangSu, China |
| Brand Name | ChunMu Refrigeration |
| Certification | CE |
| Model Number | CM8600(T) |
| Document | 2025 Product Catalogue (Chu...t).pdf |
Product Details
Product Name:
CM8600(T) Dual System Refrigerant Charging Machine
Type:
Refrigerant Charging Machine
Charging Speed:
≥60-80 G/s
Charging Capacity:
10-999999g
Resolution:
0.1g
Vacuum Degree:
3-5pa
Injector Connector:
Hansen 1/4" Or 3/8"
Charging Hose Length:
3m-20m
PLC:
Siemens
Charging Hose Length:
3m - 20m
Charging Technology:
RRT Turbine Flowmeter
Power Supply:
380V 50Hz 3Ph Or 220V 50HZ 1Ph
Approved Refrigerants:
R134a, R22, R513a, R404A, R410A, R406A
Application:
Air Condition, Water Cooler, Beer Machine, Freezers, Refrigerators, Chillers, Heat Pumps
Port:
Shanghai Ningbo Tianjin Qingdao Shenzhen
Warranty:
1 Year
Highlight:
Freezers Refrigerant Charging Machine
,200g/S Refrigerant Charging Machine
,100g/S Fast Charging Refrigerant Recharge Machine
Payment & Shipping Terms
Minimum Order Quantity
1
Price
US $26500 - 27000
Packaging Details
Plywood Case on Pallet
Delivery Time
7-30 work days
Payment Terms
L/C,T/T
Supply Ability
50 Unit/Units per Month
Product Description
CM8600(T) Dual System Refrigerant Charging Machine
Product Description
The CM8600(S) series high speed refrigerant charging machine is specially designed for work with most common refrigerants and for use in any kind of cooling system assembly line (refrigerators, water coolers, heat pumps, air conditioners etc.) to perform evacuation, leakage tests, and refrigerant charging. This system utilizes upgraded charging technology with a high flow rate booster pump to meet the needs of high production rates while maintaining very accurate refrigerant charging.
Key Advantages
- Siemens smart PLC technology for fast and accurate operation
- Smart linear algebra algorithm ensures charging accuracy at all temperatures
- Automatic refrigerant temperature compensation eliminates need for charging accuracy calibration
- High-precision flow sensor ensures accurate refrigerant perfusion
- 100-200g/s fast charging rate for large production capacity
- Combines vacuum, leakage inspection, and refrigerant charging in one system
- Ergonomic filling gun design: compact, lightweight, easy to operate with low failure rate
Product Specifications
|
Model |
CM8600(S) High Speed Refrigerant Charging Machine / CM8600(T) Dual System Refrigerant Charging Machine |
||||
|
Serial No. |
S40 |
S60 |
S80 |
S100 |
S150 |
|
Charging speed |
≥40 g/s ( 2.4 kg/min ) |
≥60g/s ( 3.6 kg/min ) |
≥80 g/s ( 4.8 kg/min ) |
≥100 g/s ( 6 kg/min ) |
≥150-200 g/s ( 9-12 kg/min ) |
|
Single Charge Capacity |
10-99999g |
20-9999999g |
|||
|
Charging accuracy |
＜100g, ±1g 500 g-2000g, ≤±0.5% ＞2000g, ≤±0.3% |
＜500g, ≤2g 500 g-2000g, ≤±0.5% ＞2000g, ≤±0.3% |
|||
|
Charging Technology |
RRT turbine flowmeter (EMERSON mass flowmeter is optional) |
||||
|
Resolution |
0.1g |
||||
|
Certification |
CE |
||||
|
Vacuum rate |
4L/S |
8L/S |
|||
|
Vacuum degree of machine |
3-5pa |
||||
|
Injector Connection |
Hansen 1/4" or 3/8" |
||||
|
Charging hose length |
Standard with 3 meters, other specifications 3-10 meters optional |
||||
|
Communication interface |
RS485/RS232/Ethernet |
||||
|
Pre-set Channel |
100 |
||||
|
Compressed air pressure |
0.5-0.7Mpa |
||||
|
PLC |
Siemens |
||||
|
Power supply |
380V 50Hz 3Phase or 220V 50Hz 1Phase |
||||
|
Dimension |
900*800*1340 mm |
||||
|
Approved refrigerants |
R134a, R22, R513a, R404A, R410A, R406A etc. |
||||
|
Application |
Air Condition, Water Cooler, Beer Machine, Freezers, refrigerators, chillers, heat pumps,etc. |
||||
|
Option Function |
Refrigerant recovery unit, Bar code scanner, Printer, Data acquisition, IPC |
||||
Our Services
- OEM & ODM services available for custom requirements
- 24-hour response to price and technical inquiries
- On-site factory inspection or virtual factory tours available
- Technical engineers provide model selection guidance and custom design assistance
- Detailed quotation schemes and system configurations provided
- Complete installation documentation (electrical diagrams, user manuals) in electronic and hard copy
- Comprehensive after-sales service including technical guidance, maintenance methods, troubleshooting, and regular follow-ups
About Nanjing ChunMu (CM) Refrigeration
Founded in 1998, Nanjing ChunMu operates from a 10,184.17㎡ facility as a smart modeling enterprise specializing in refrigerant recovery, purification, and charging equipment R&D and manufacturing. Established a US branch in 2019 with nearly 100 employees globally. With 21 years of export experience, we currently serve markets in over 64 countries and regions.
Quality Certifications
CM products undergo strict quality control and hold the following certifications: European Union CE certification, ATEX explosion-proof certification, ISO9001 certification.
Cooperation Partners
We have established long-term partnerships with global refrigeration equipment manufacturers including York (12-year partnership), Daikin, Carrier, McQuay, Trane, and Danfoss.
Packing & Delivery
- Fast Delivery: Standard models available for immediate shipment
- Packaging: Non-fumigation packaging boxes with buckle-type locks for safe shipping
Frequently Asked Questions
Q1: What is the minimum order quantity and delivery time?
MOQ: 1 Unit. Delivery Time: 7-30 days (varies by product).
Q2: How is the order process tracked?
Technical proposal communication → Order production → Performance test → Packaging → Documentation confirmation → Transportation → Customs declaration → Shipping → Installation assistance → After-sales support. Buyers receive notification emails with photos and reports at each stage.
Q3: Can you customize the equipment?
Yes, we accept OEM and ODM orders. Our technical engineers will provide selection guidance or help design customized models.
Q4: What does your sales service include?
Our comprehensive service includes 24-hour response to inquiries, technical guidance, optional auxiliary equipment, detailed quotations, complete installation documentation, and after-sales support including troubleshooting and maintenance.
Q5: What warranty do you offer?
All products undergo strict testing. We provide a 12-month warranty from the bill of lading date, including free replacement of defective parts. After warranty period, we offer cost-price spare parts and continued technical support.
