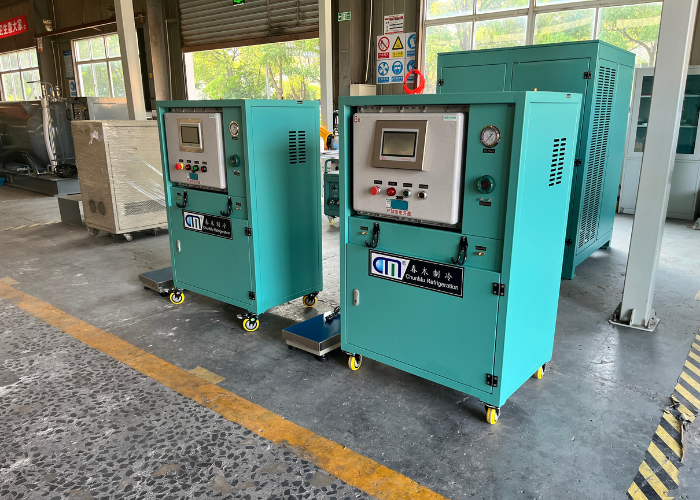

Siemens PLC Refrigerant Filling Station With Integrates Vacuum / Split Filling Functions

Place of Origin	JiangSu, China
Brand Name	ChunMu Refrigeration
Certification	CE
Model Number	CM20A-1S

Product Details

Product Name:

CM20A Multiple-Stations Refrigerant Filling System

Control System:

Siemens PLC Programmer Control

Filling Capacity:

10L-100L Cylinders

Standard Stations:

Filling Rate:

4kg/min

Filling Accuracy:

±0.5%

13.6L Cylinder Filling Rate:

≤15 Pcs/h

Application:

R32,R22,R134a,R410A,R407C,R404A,R507,etc

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Video Outgoing-inspection:

Provided

Warranty Of Core Components:

1 Year

Warranty:

1 Year

Port:

Shanghai

Highlight:

Siemens PLC Refrigerant Filling Station

Vacuum Refrigerant Filling Station

Split Filling Refrigerant Filling Equipment

Payment & Shipping Terms

Minimum Order Quantity

Price

US $7000-10500

Packaging Details

Wooden case

Delivery Time

7-30 work days

Payment Terms

L/C,T/T

Supply Ability

50 Unit/Units per Month

Product Description

Refrigerant Dispensing Machine for R134a R410a R22 Cylinder Filling

CM20A Multiple-Stations refrigerant filling system is specially designed for filling refrigerant from ISO tank or storage tank to 10L-100L cylinder. It integrates filling and vacuum functions with Siemens PLC programmer control system to improve production capacity. Multiple stations can be customized.

Key Features

Integrates vacuum and split filling functions with smart PLC control
Uses special booster oil-free compressor for sub-packaging various refrigerants like R22/R134A/R410A
Suitable for transferring refrigerants from ISO tank or 1000-400L tank to 12-60L cylinder
Fast transfer speed of 4kg/min for each filling station
High filling accuracy of 0.5%
No refrigerant loss during transfer process
Daily transfer capacity of 100-300pcs of 13.6L(30lbs) cylinders
Low investment with fast return and compact design for easy movement

Specifications

Model	CM20A
Serial No.	1 S \| 3 S
Workstation	1 \| 3
Vacuum Pump	4L/S 1 \| 4L/S 3
Filling Rate	≤4 kg/min \| ≤4 kg/min
13.6L Cylinder Filling Rate	≤15 pcs/h \| ≤45 pcs/h

Related Service

OEM & ODM, or any other unique customized demands are acceptable
Quick response within 24 hours for price or technical inquiries
On-site factory inspection services or real-time video factory tour
Technical engineers provide model selection guidance and customized design
Detailed quotation scheme and system configuration provided
Optional install parts or auxiliary equipment according to requirements
Complete installation documentation in electronic and hard copy
Comprehensive after-sales service including technical guidance and maintenance

Our Company

ChunMu (CM) Refrigeration, founded in 1998, operates from a 10,184.17㎡ facility as a smart modeling enterprise specializing in refrigerant recovery, purification, and charging equipment R&D and manufacturing. Established a US branch in 2019 with nearly 100 employees globally. With 21 years of export experience, we currently serve markets in over 64 countries and regions.

Quality Certifications

CM products undergo strict quality control and hold the following certifications: European Union CE certification, ATEX explosion-proof certification, ISO9001 certification

Cooperation Partners & Cases

We have cooperated with global well-known refrigeration equipment manufacturers for many years, serving as OEM supplier for York (12 years of deep cooperation), Daikin, and establishing long-term partnerships with Carrier, McQuay, Trane, Danfoss, etc.

Packing & Delivery

Fast Delivery: Enough stocks of standard models for immediate delivery to meet urgent needs
Packaging: Non-fumigation packaging box with buckle type lock for safety shipping

FAQs

Q1: Minimum Order Quantity(MOQ) and product delivery time

MOQ: 1 Unit. Product Delivery Time: 7-30 days (Specific time according to specific products)

Q2: The whole order process is tracked throughout

Technical proposal communication → Order production → Performance test → Packaging → Necessary documents confirmation → Transportation → Customs declaration → Shipping → Installation assistance (provide user manual or install video) → After-sales support. Buyer will receive the notification mail (include photos, report or other documents) in each process.

Q3: Could you customize the equipment?

OEM and ODM are accepted, or any other unique customization needs. ChunMu's experienced technical engineers will provide selection guidance or help design customized models.

Q4: What does the sales service include?

Any price inquiries or technical inquiries will be responded within 24 hours
Experienced technical engineers will give the model selection guide or help design the customized model
Optional install parts or auxiliary equipment according to customers' requirements
Detailed quotation scheme and system configuration will be provided
All necessary installation documentation will be provided in both electronic copy and hard copy
Comprehensive after-sales service system including technical guidance and maintenance

Q5: What kind of warranty do we offer?

All products undergo strict testing, with 12 months guarantee from bill of lading date. During guarantee period, we provide free spare parts for quality issues. After guarantee period, we offer spare parts at cost price and continued technical support.
