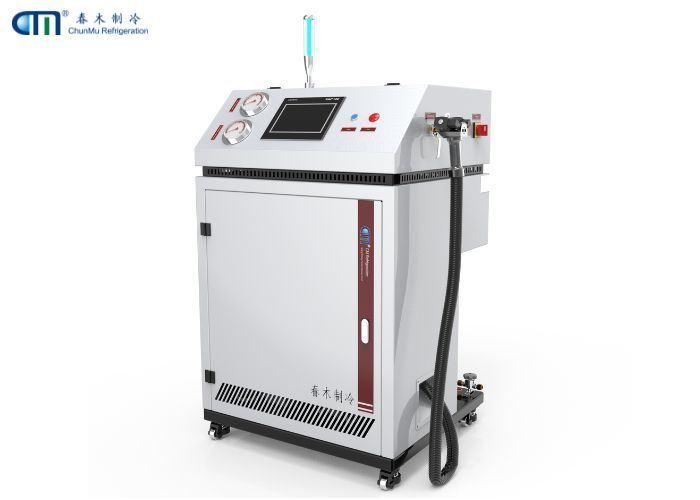

Automatic High Precision AC Gas Charging Machine For R1234yf Refrigerant
| Place of Origin | JiangSu, China |
| Brand Name | ChunMu Refrigeration |
| Certification | CE, ATEX, ZJEx |
| Model Number | CM8600(Exs) |
Automatic AC Gas Charging Machine
,R1234yf AC Gas Charging Machine
,R1234yf Refrigerant Gas Charging Machine
The CM8600 series refrigerant charging machine is specially designed for flammable and explosive refrigerants, suitable for various cooling system assembly lines (refrigerators, water coolers, heat pumps, air conditioners, etc.) to perform evacuation, leakage tests, and refrigerant charging. This model features dual charging systems allowing simultaneous operation with two charging guns and includes an optional recovery function for mixed production lines. The entire system is CE and ATEX certified.
- Siemens smart PLC technology for fast and accurate operation
- Automatic refrigerant level monitoring with low-level alerts
- Pneumatic pressurization system prevents refrigerant contamination
- High-precision flow sensor ensures accurate measurement
- Integrated leakage alarm system
- Combined vacuum, leakage inspection, and refrigerant charging in one system
- Ergonomic filling gun design for easy operation and maintenance
| Attribute | Value |
|---|---|
| Model | CM8600(ExS) |
| Charging Speed | ≥60-80 g/s (3.6-4.8 kg/min) |
| Charging Capacity | 10-999999g |
| Charging Accuracy | <100g: ±1g; 100g-2000g: ≤±0.5%; >2000g: ≤±0.3% |
| Resolution | 0.1g |
| Vacuum Degree | 3-5pa |
| Injector Connector | Hansen 1/4" or 3/8" |
| Charging Hose Length | 3m-20m |
| PLC | Siemens |
| Power Supply | 380V 50Hz 3Ph or 220V 50HZ 1Ph |
| Approved Refrigerants | R600a, R290, R32, R1234ze, R1234yf, R134a, etc. |
| Application | Air conditioners, water coolers, beer machines, freezers, refrigerators, chillers, heat pumps |
| Warranty | 1 Year |
| Measurement Methods | RRT turbine flowmeter (EMERSON mass flowmeter optional) |
| Certification | CE, ATEX, ZJEX |
| Vacuum Rate | 4L/S | 8L/S |
| Communication Interface | RS485/RS232/Ethernet |
| Pre-set Channel | 100 |
| Compressed air Pressure | 0.5-0.7Mpa |
| Dimension | 900*800*1340 mm |
| Option Function | Refrigerant recovery unit, Bar code scanner, Printer, Data acquisition, IPC |
- OEM & ODM customization available
- 24-hour response to inquiries
- On-site factory inspection or virtual tours
- Technical guidance and model selection assistance
- Complete documentation including electrical diagrams and user manuals
- Comprehensive after-sales support
Founded in 1998, Nanjing ChunMu operates from a 10,184.17㎡ facility specializing in refrigerant recovery, purification, and charging equipment R&D and manufacturing. With a US branch established in 2019 and nearly 100 employees globally, we have 21 years of export experience serving markets in over 64 countries.
Our products undergo strict quality control and hold European Union CE certification, ATEX explosion-proof certification, and ISO9001 certification.
We maintain long-term partnerships with global refrigeration equipment manufacturers including York (12-year partnership), Daikin, Carrier, McQuay, Trane, and Danfoss.
- Fast Delivery: Standard models available for immediate shipment
- Secure Packaging: Non-fumigation packaging boxes with buckle-type locks
MOQ: 1 Unit. Delivery Time: 7-30 days (varies by product).
Technical proposal → Order production → Performance test → Packaging → Documentation → Shipping → Installation support → After-sales service. Customers receive notifications at each stage.
Yes, we accept OEM and ODM requests. Our engineers will provide guidance or design customized solutions.
Our comprehensive service includes technical support, customization options, detailed documentation, and after-sales assistance.
12-month warranty from bill of lading date, including free replacement parts for quality issues. Post-warranty support available at cost.
