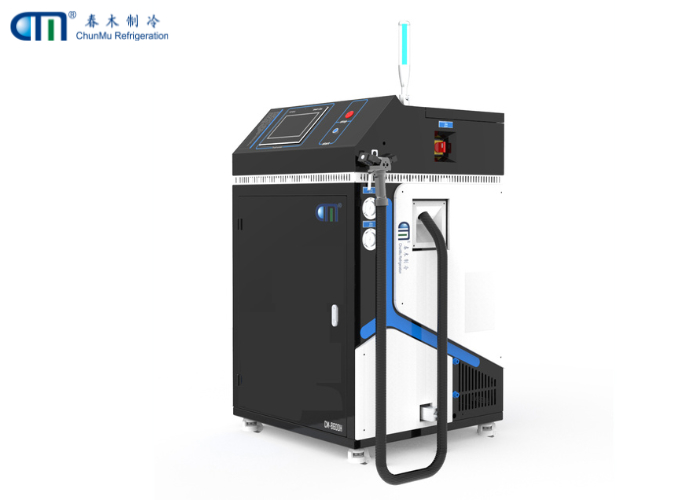

High Speed Ac Refrigerant Charging Equipment Refrigerant Gas Charging Machine
| 起源の場所 | 江蘇、中国 |
| ブランド名 | ChunMu Refrigeration |
| 証明 | CE |
| モデル番号 | CM8600(S) |
| Document | CM Refrigerant Recovery Mac....pdf |
high speed refrigerant charging machine
,refrigerant gas charging equipment
,AC refrigerant charging machine with warranty
Description
CM8600(S) series high speed refrigerant charging machine was specially designed for work with most common refrigerant and to be used in any kind of assembly lines of cooling system (refrigerators, water cooler,heat pump, air conditioners etc...) to perform evacuation, leakage test and refrigerant charging. This system utilizes upgraded charging technology with high flow rate booster pump which can meet the needs of high production rates that require a very accurate refrigerant charging accuracy.
Advantages
1. Siemens smart PLC technology for fast and accurate operation process
2. Smart linear algebra algorithm to make sure all charging amount was accuract at each temperature
3. Automatic refrigerant temperature compensation to require no charging accuracy calibration
4. Using a high-precision flow sensor as a measuring device to ensure the accuracy of refrigerant perfusion
5. 100-200g/s fast charging rate for large production capacity
6.Combine vacuum, leakage inspection, refrigerant charging to all in one system
7. The humanized design of the filling gun, the structure is small and exquisite, light weight, easy for workers to operate, low failure rate and convenient maintenance
Specifications:
| Model | CM8600(S) Refrigerant Charging Machine | ||||
| Serial No. | S40 | S60 | S80 | S100 | S150 |
| Charging speed | ≥40 g/s ( 2.4 kg/min ) |
≥60g/s ( 3.6 kg/min ) |
≥80 g/s ( 4.8 kg/min ) |
≥100 g/s ( 6 kg/min ) |
≥150-200 g/s ( 9-12 kg/min ) |
| Single Charge Capacity | 10-99999g | 20-9999999g | |||
| Charging accuracy | ＜100g, ±1g 500 g-2000g, ≤±0.5% ＞2000g, ≤±0.3% |
＜500g, ≤2g 500 g-2000g, ≤±0.5% ＞2000g, ≤±0.3% |
|||
| Charging Technology | RRT turbine flowmeter (EMERSON mass flowmeter is optional) | ||||
| Resolution | 0.1g | ||||
| Certification | CE | ||||
| Vacuum rate | 4L/S | 8L/S | |||
| Vacuum degree of machine | 3-5pa | ||||
| Injector Connection | Hansen 1/4" or 3/8" | ||||
| Charging hose length | Standard with 3 meters, other specifications 3-10 meters optional | ||||
| Communication interface | RS485/RS232/Ethernet | ||||
| Pre-set Channel | 100 | ||||
| Compressed air pressure | 0.5-0.7Mpa | ||||
| PLC | Siemens | ||||
| Power supply | 380V 50Hz 3Phase or 220V 50Hz 1Phase | ||||
| Dimension | 900*800*1340 mm | ||||
| Approved refrigerants | R134a,R22,R513a,R404A,R410A,R406A etc. | ||||
| Application | Air Condition,Water Cooler, Beer Machine,Freezers, refrigerators, chillers, heat pumps,etc. | ||||
| Option Function | Refrigerant recovery unit, Bar code scanner, Printer, Data acquisition, IPC | ||||
Related Service:
- OEM & ODM, or any other unique customized demands are acceptable.
- Any price inquiries or technical inquiries will be responded within 24 hours.
- On-site factory inspection services, or show you the status of our factory through real-time video.
- Experienced technical engineers will give the model selection guide or help design the customized model.
- Detailed quotation scheme and system configuration will be provided to the customer together. The whole order process is tracked throughout.
- Besides the temperature control units, other install parts or auxiliary equipment is optional according to customers'requirements.
- All necessary installation documentation (e.g. Electrical diagram, User Manual) will be provided in both electronic copy and hard copy.
- Perfect after-sales service system, it's including: Technical guidance, detailed machine maintenance methods, troubleshooting, solutions, regular return visit etc.
Our Company
Nanjing ChunMu (CM) Refrigeration, founded in 1998, operates from a 10,184.17㎡ facility as a smart modeling enterprise specializing in refrigerant recovery, purification, and charging equipment R&D and manufacturing. Established a US branch in 2019 with nearly 100 employees globally.
21 years of export experience, we currently serve markets in over 64 countries and regions.
CM products undergo strict quality control and hold the following certifications:European Union CE certification, ATEX explosion-proof certification, ISO9001 certification
Cooperation Partners & Cases
We had cooperated with global well-known refrigeration equipment manufacturer for many years, besides as the OEM supplier of York(the deep cooperation of the parties had lasted for 12 years.), Daikin, also we’ve established long-term partnerships with Carrier, McQuay, Trane, Danfoss, etc
Packing & Delivery
1.Fast Delivery: Enough stocks of standard models for immediate Delivery to meet urgent needs.
2.Packaging: Non-fumigation packaging box with buckle type lock for safety shipping.
FAQs
Q1: Minimum Order Quantity(MOQ) and product delivery time
MOQ: 1 Unit. Product Delivery Time: 7-30 days(Specific time according to specific products)
Q2:The whole order process is tracked throughout
Technical proposal communication → Order production → Performance test → Packaging→ Necessary documents confirmation →Transportation → Customs declaration → Shipping→ Installation assistance(provide user manual or install video) → After-sales support. Buyer will receive the notification mail (include photos, report or other documents) in each process.
Q3: Could you customize the equipment?
OEM and ODM are accepted, or any other unique customization needs. ChunMu's experienced technical engineers will provide selection guidance or help design customized models.
Q4: What does the sales service include?
- Any price inquiries or technical inquiries will be responded within 24 hours.
- Experienced technical engineers will give the model selection guide or help design the customized model.
- Besides the temperature control units, other install parts or auxiliary equipment is optional according to customers' requirements.
- Detailed quotation scheme and system configuration will be provided to the customer together.
- All necessary installation documentation (e.g. Electrical diagram, User Manual) will be provided in both electronic copy and hard copy.
- Perfect after-sales service system, it's including: Technical guidance, detailed machine maintenance methods, troubleshooting, solutions, regular return visit etc.
Q5: What kind of warranty do we offer?
All the products are passed strict test, and CM Refrigeration provide 12 months guarantee since the date of bill of lading. During this guarantee period, CM Refrigeration provide spare parts without any charge in case of quality discrepancy caused by us. If out of guarantee period, we still can charge the buyer cost price of spare parts and provide Technical Product support for customers.
